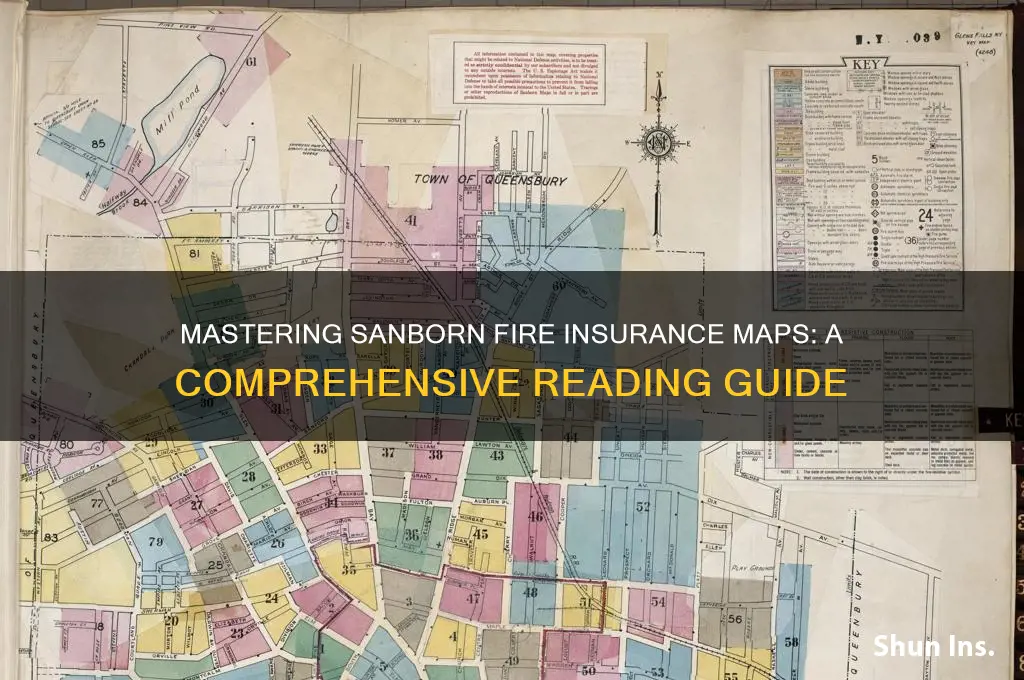

Sanborn Fire Insurance Maps are invaluable historical resources that provide detailed information about urban areas, primarily for assessing fire risks. Created by the Sanborn Map Company in the late 19th and early 20th centuries, these maps offer a comprehensive view of buildings, streets, and infrastructure, including construction materials, building use, and even the number of floors. To read a Sanborn map effectively, start by understanding its color-coding system: yellow for wood, pink for brick, and blue for stone or concrete. Pay attention to the map’s scale, typically 1 inch equals 50 feet, and use the index sheets to locate specific blocks. Key symbols, such as fire hydrants, elevators, and windows, provide additional context. By carefully interpreting these elements, you can gain insights into the historical layout and development of a city, making Sanborn maps essential tools for historians, urban planners, and genealogists alike.
Explore related products
What You'll Learn
Understanding Map Symbols and Legends
Sanborn fire insurance maps are rich in detail, but their value lies in understanding the symbols and legends that convey critical information about buildings, materials, and potential fire risks. The legend, typically found in the map’s margins, is the key to decoding these symbols. It explains the meanings of lines, colors, and icons used throughout the map. For example, solid black lines often represent brick walls, while dashed lines may indicate wooden structures. Colors, though not always present in older maps, can denote building materials or usage types. Familiarizing yourself with the legend is the first step to interpreting the map accurately.
Building symbols are central to Sanborn maps, as they provide insights into construction materials, which directly relate to fire risk. A rectangle with a series of small x’s inside typically represents a wooden building, while a rectangle with diagonal lines indicates a brick structure. Some symbols may also include details like the number of stories, roof type, and even the presence of firewalls. For instance, a thick black line within a building symbol often signifies a firewall, a critical feature for fire containment. Understanding these symbols allows you to assess the fire resistance of structures and their potential impact on neighboring buildings.
In addition to building symbols, Sanborn maps use icons to denote specific features like doors, windows, and staircases. Doors are usually represented by a small break in the building’s outline, while windows are shown as thin rectangles or lines. Staircases may appear as a series of parallel lines or a zigzag pattern. These details are essential for understanding building layouts and potential escape routes in case of a fire. The legend will clarify the exact meaning of each icon, ensuring you interpret the map correctly.
Another important aspect of the legend is its explanation of text annotations. Sanborn maps often include labels for street names, building usage (e.g., “store,” “dwelling”), and other key information. For example, a building labeled “Tin S” might indicate a structure with a tin roof, while “Comp Shg” could mean a roof made of composition shingles. These annotations provide context that complements the visual symbols, offering a more comprehensive understanding of the mapped area.
Finally, the legend may also include scale indicators and directional references. Sanborn maps are typically drawn to a specific scale, such as 50 feet to the inch, which is crucial for measuring distances and sizes accurately. Directional references, like a compass rose or north arrow, help orient the map in relation to real-world geography. By mastering the legend, you can navigate the map with precision and extract the wealth of information it contains. Understanding map symbols and legends is not just about reading a Sanborn map—it’s about unlocking its full potential as a historical and practical tool.
Vaping and Life Insurance: What They Can and Can't See
You may want to see also
Explore related products
![National Geographic Road Atlas 2026: Adventure Edition [United States, Canada, Mexico]](https://m.media-amazon.com/images/I/81rRihqWqgL._AC_UY218_.jpg)
Identifying Building Materials and Construction Types
Sanborn fire insurance maps are invaluable resources for understanding the historical layout and construction details of urban areas. One of the key aspects of reading these maps is identifying building materials and construction types, which are critical for assessing fire risk and structural integrity. Sanborn maps use a combination of symbols, colors, and notations to convey this information. To begin, familiarize yourself with the map’s legend, which explains the specific symbols and abbreviations used to denote different materials and construction styles. For example, brick buildings are typically represented by pink or red shading, while frame (wood) structures are often shown in yellow. Understanding these color codes is the first step in identifying building materials.
Once you’ve grasped the color coding, pay close attention to the notations and symbols that provide additional details about construction types. Sanborn maps often use abbreviations like "F" for frame, "B" for brick, and "C" for concrete. These abbreviations may appear within or adjacent to the building outlines. Additionally, some maps include hatched lines or patterns to indicate roofing materials, such as slate or metal. For instance, a building with a pink outline and a notation of "B" is likely a brick structure, while a yellow outline with "F" indicates a wooden frame building. These details are essential for distinguishing between fire-resistant and combustible materials.
Another important aspect is identifying mixed construction types, which are common in older buildings. Sanborn maps may show buildings with multiple materials, such as a brick exterior with a wooden frame interior. Look for variations in shading or notations within the same structure. For example, a building might have a pink outline with yellow hatching on one side, indicating a brick exterior with a wooden frame addition. Understanding these nuances helps in accurately assessing the fire risk and structural composition of a building.
Roofing materials are also crucial in identifying construction types. Sanborn maps often use specific symbols or abbreviations to denote roofing materials, such as "SL" for slate or "M" for metal. The roof’s representation may also include patterns, like diagonal lines for slate or dots for metal. By examining these details, you can determine whether a building has a fire-resistant roof or one that is more susceptible to fire damage. This information is particularly important for evaluating the overall fire safety of a structure.
Finally, take note of any additional annotations that describe special construction features. Sanborn maps may include remarks about fire walls, sprinkler systems, or other fire protection measures. These details are often written in small text within or near the building outline. For example, a notation like "FW" indicates a fire wall, while "Spr" signifies the presence of sprinklers. Such annotations provide deeper insights into the building’s construction and its preparedness against fire hazards. By carefully analyzing these elements, you can gain a comprehensive understanding of the building materials and construction types depicted on a Sanborn fire insurance map.
Correcting Life Insurance Bureau Mistakes: A Step-by-Step Guide
You may want to see also
Explore related products
Locating Streets, Addresses, and Property Boundaries
Sanborn fire insurance maps are invaluable resources for understanding the historical layout of cities, including streets, addresses, and property boundaries. To locate streets, start by examining the map’s index, which typically lists street names alphabetically. Each street is represented by a labeled line on the map, often with thicker lines indicating major roads. Streets are usually labeled at right angles to their direction, making it easier to identify them. Cross-referencing the index with the map ensures accuracy, especially in densely populated areas where streets may be closely spaced. Pay attention to the map’s orientation, as Sanborn maps are not always aligned with true north, and a compass rose may be provided for reference.
Addresses are often indicated directly on the map, typically along the street lines. Look for small numbers placed adjacent to building footprints or property lines. These numbers correspond to the addresses of individual properties. If addresses are not explicitly marked, they can sometimes be inferred by counting the buildings along a street, as Sanborn maps often include sequential numbering. However, be cautious, as historical addressing systems may differ from modern ones. For greater precision, use the map’s scale to measure distances between properties, ensuring you correctly identify the desired address.
Property boundaries are delineated by the outlines of building footprints and open spaces on the map. Each property is typically represented by a distinct shape, often shaded or colored differently to indicate material type (e.g., brick, wood). Boundaries are usually defined by the edges of these shapes, which align with adjacent streets, alleys, or neighboring properties. Alleys, shown as thinner lines, often separate rows of properties and can serve as additional boundary markers. If a property extends beyond the main building, such as a backyard or garden, it may be outlined separately, providing a clearer view of the entire property boundary.
To verify property boundaries, examine the map’s keys and legends, which explain symbols and colors used. For example, fences, walls, or other boundary markers may be indicated by specific symbols. Additionally, some Sanborn maps include lot lines, which are thin, dashed lines dividing properties within a block. These lot lines are particularly useful for identifying individual parcels, especially in residential areas. By combining the visual cues of building footprints, lot lines, and street alignments, you can accurately determine property boundaries.
When working with Sanborn maps, it’s essential to consider the map’s publication date, as streets, addresses, and property boundaries may have changed over time. If multiple editions of the map are available, compare them to track historical changes. For instance, a street that appears on an earlier map may have been renamed or removed in a later edition. Similarly, property boundaries might shift due to redevelopment or urban planning. By cross-referencing different editions and corroborating with other historical records, you can ensure a more accurate understanding of the area’s layout.
Finally, practice is key to mastering the skill of locating streets, addresses, and property boundaries on Sanborn maps. Begin with simpler sections of the map and gradually move to more complex areas. Use tools like magnifying glasses or digital zoom functions to examine details closely. Over time, you’ll become more adept at interpreting the map’s nuances, making it easier to navigate its wealth of information. With patience and attention to detail, Sanborn maps can reveal a rich tapestry of historical urban geography.
Ordering a Pump: Using Your Insurance
You may want to see also
Explore related products
Interpreting Fire Risk and Hazards Markers
Sanborn fire insurance maps are invaluable tools for understanding the historical layout and fire risks of urban areas. When interpreting fire risk and hazards markers on these maps, it’s essential to focus on specific symbols, colors, and annotations that indicate potential dangers. Fire hazards are typically denoted by distinct icons or labels, such as flammable material storage, industrial machinery, or hazardous chemicals. For example, a small black circle with a dot in the center often represents a stove or furnace, while a shaded area with cross-hatching might indicate the presence of highly combustible materials like oil or gasoline. Familiarizing yourself with these symbols is the first step in assessing fire risks.
Colors play a critical role in identifying fire hazards on Sanborn maps. Red is commonly used to highlight buildings constructed with highly flammable materials, such as wood, while yellow or gray may indicate less flammable structures like brick or stone. Additionally, red lines or shading might mark areas with elevated fire risks, such as densely packed buildings or industrial zones. Pay close attention to the key or legend provided on the map, as it explains the specific color-coding system used for fire hazards. This will help you accurately interpret the level of risk associated with different structures and areas.
Annotations and labels are another crucial aspect of interpreting fire risk markers. Textual notes on the map may describe the type of business operating in a building, the materials stored there, or the presence of fire protection systems like sprinklers or hydrants. For instance, a building labeled "Paint Factory" or "Oil Storage" would pose a significantly higher fire risk than a residential dwelling. These annotations provide context that complements the visual symbols and colors, allowing for a more comprehensive understanding of potential hazards.
Understanding the spatial arrangement of buildings and hazards is also key to interpreting fire risk. Sanborn maps often show the proximity of high-risk structures to one another, which can exacerbate fire spread. Look for clusters of buildings with flammable materials or industrial activities, as these areas are more susceptible to rapid fire propagation. Additionally, note the location of fire stations, hydrants, and other firefighting resources, as their presence can mitigate risks. Analyzing the layout in relation to hazards helps in assessing the overall fire vulnerability of a neighborhood.
Finally, historical context is vital when interpreting fire risk markers on Sanborn maps. Building practices, industrial activities, and fire safety standards have evolved over time, so a structure labeled as high-risk in the early 20th century might not pose the same danger today. However, these maps provide a snapshot of historical conditions, which can still be relevant for understanding the origins of urban fire risks. By combining symbol recognition, color interpretation, annotation analysis, and spatial awareness, you can effectively interpret fire risk and hazards markers on Sanborn maps.
Vanity Plates and Insurance: Do You Need to Update Your Policy?
You may want to see also
Explore related products
Navigating Map Scales and Orientation Techniques
Sanborn fire insurance maps are invaluable historical resources, but understanding their scale and orientation is crucial for accurate interpretation. These maps were created to provide detailed information about urban areas, primarily for assessing fire risks, and as such, they require careful navigation. One of the first steps in reading a Sanborn map is to identify the scale, typically found in the map's legend or margin. Common scales include 1 inch = 50 feet or 1 inch = 100 feet, though this can vary. Understanding the scale allows you to measure distances accurately, which is essential for assessing block sizes, building dimensions, and street widths. Always use a ruler or the scale bar provided to avoid misinterpretation.
Orientation is another critical aspect of navigating Sanborn maps. Unlike modern maps, which often align with true north, Sanborn maps may be oriented differently to best fit the layout of the area they depict. Look for a compass rose or directional indicator, usually located near the scale. If absent, examine the map's relationship to major streets or landmarks to determine its orientation. For example, "north" on the map might align with a specific street or river, so understanding this relationship helps you mentally align the map with the real-world geography.
When working with multiple Sanborn map sheets, pay attention to how they fit together. Each sheet covers a specific area, and understanding their arrangement is key to navigating larger urban landscapes. Map sheets often overlap slightly, and their orientation relative to one another can vary. Refer to the index map, if available, to see how the sheets connect and to ensure you’re correctly aligning them. This is particularly important when tracing routes or assessing the spatial relationship between distant features.
Techniques for maintaining orientation while using Sanborn maps include cross-referencing with modern maps or aerial imagery. Overlaying a Sanborn map on a current map can help you align historical features with their present-day locations. Additionally, use prominent landmarks or street intersections as reference points to anchor your understanding of the map’s orientation. For example, if a church or large factory is depicted, locate it on both the Sanborn map and a modern map to establish a consistent frame of reference.
Finally, practice is essential for mastering map scales and orientation techniques. Start with a small section of a Sanborn map and gradually work your way to larger areas. Regularly measure distances and verify orientations to build confidence. Over time, you’ll develop a sense of how these maps are structured and how to navigate them effectively. By combining attention to scale, careful orientation analysis, and practical techniques, you’ll unlock the wealth of information contained in Sanborn fire insurance maps.
Does Mendoya Insurance Cover Bodily Injury? A Comprehensive Guide
You may want to see also
Frequently asked questions
Sanborn Fire Insurance Maps are detailed, large-scale maps created by the Sanborn Map Company to assist fire insurance companies in assessing risk. They provide valuable information about building materials, property layouts, and urban infrastructure from the late 19th to mid-20th centuries. They are important for historical research, urban planning, and genealogy, offering insights into the development of towns and cities.
Sanborn Maps use a standardized key to represent buildings, materials, and features. For example, yellow indicates frame buildings, pink represents brick, and blue denotes stone. Symbols like hatch marks, circles, and lines indicate details such as firewalls, windows, and hydrants. Refer to the map’s key or legend, usually found in the margin, to decode specific symbols and colors.
Sanborn Maps are available through various sources, including the Library of Congress, which offers a free digital collection. Many universities, historical societies, and local libraries also provide access. Additionally, commercial databases like ProQuest’s Digital Sanborn Maps offer searchable, digitized versions for subscribers. Always check the coverage dates and locations for the area you’re researching.
